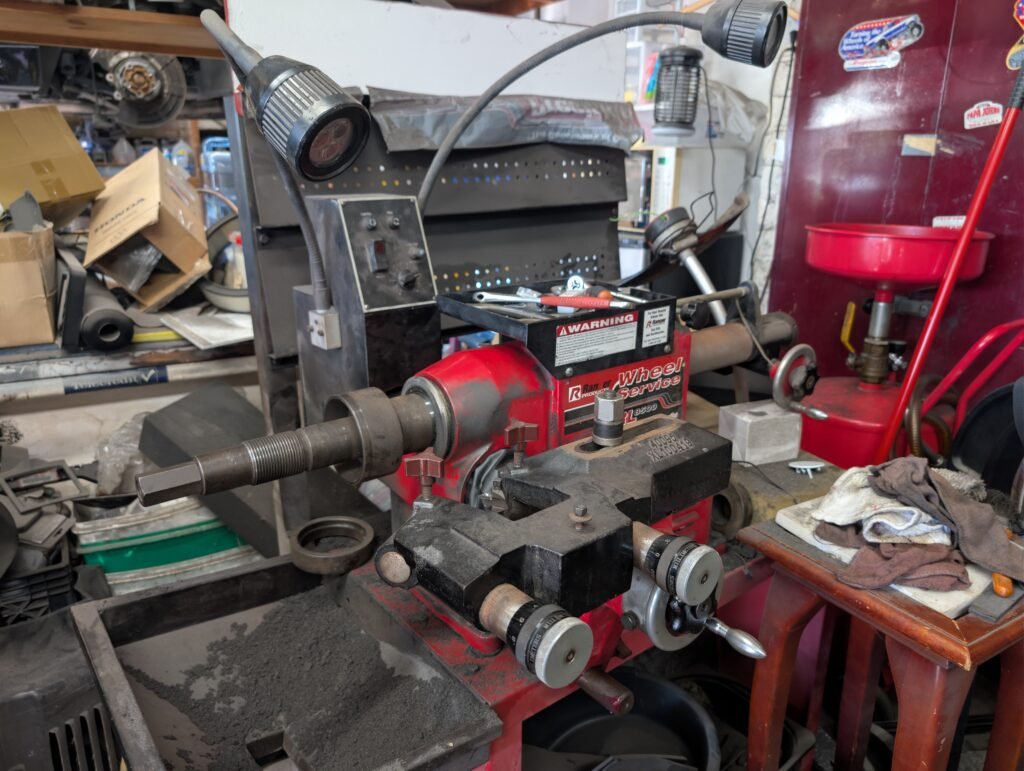

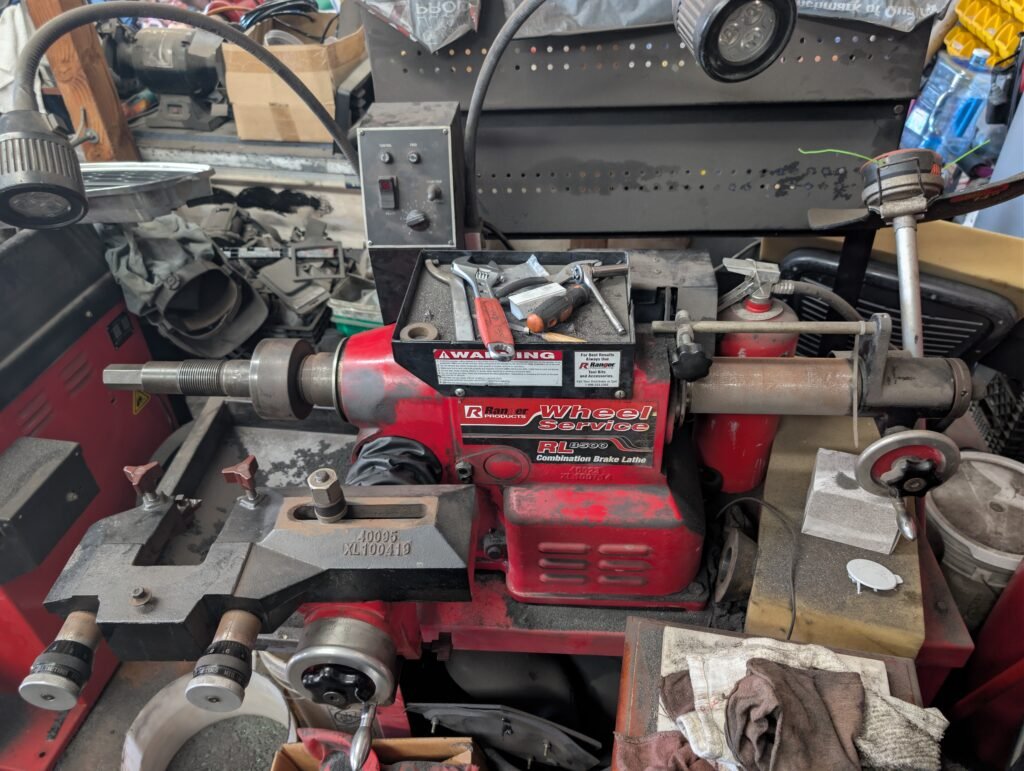

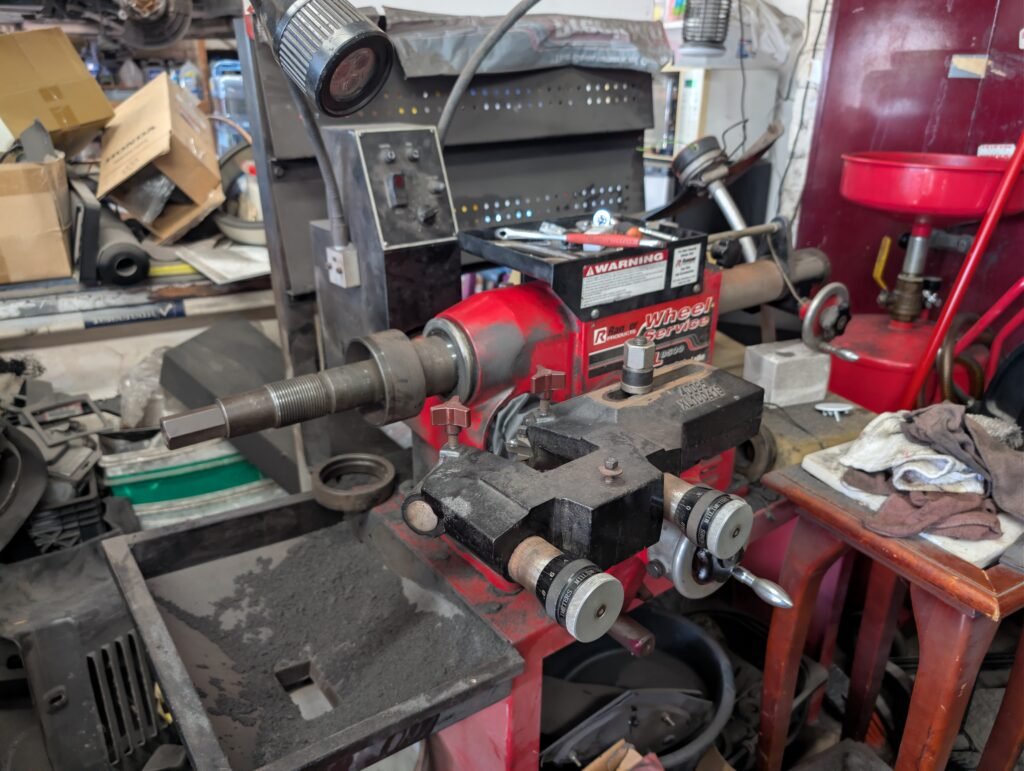

Ranger Brake Lathe Service, Repair and Calibration

Ranger brake lathes are known for innovation, precision machining and advanced servo-motor technology. However, like any high-performance machine, the RL-8500, RL-8500XLT and similar Ranger brake lathes develop mechanical, electrical and cutting-quality issues over time. When performance drops, your shop loses time, accuracy and profitability.

We specialize in diagnosing, repairing and calibrating Ranger brake lathes, restoring spindle stability, cutting accuracy and feed consistency to factory-level performance.

If you’re looking for Ranger brake lathe service, Ranger brake lathe repair or Ranger RL-8500 troubleshooting, our technicians provide complete on-site solutions.

Common Ranger Brake Lathe Problems We Fix

Even though Ranger brake lathes outperform many brands, they still develop issues due to heavy daily use. These are the most frequent problems we repair:

Mechanical Issues

• tool-tip chatter and vibration marks
• spindle misalignment or bearing wear
• excessive runout during rotor or drum cuts
• arbor imbalance causing irregular surface finish
• drum-to-rotor switching misalignment
• loose or worn adapters

Electrical & Motor Problems

• DC servo motor failures
• power supply overheating
• feed motor not responding
• control board and switch malfunction
• inconsistent RPM
• electrical shorts or burnt wiring

Cutting Quality Issues

• spiral patterns on rotors
• rough or uneven finish
• cut depth drifting during operation
• excessive noise during cutting
• single-pass micro-finish not achievable
• difficulties maintaining feed rate

Feed System Failures

• crossfeed not engaging
• feed screw backlash
• feed rate inconsistent or stuck
• servo motor desynchronization
• gearbox noise (older Ranger units still have them)

Adapter & Tooling Problems

• damaged cones or spacers
• incorrect centering adapters
• worn carbide inserts
• misaligned twin-cutter tool head

We fully restore the accuracy and cutting performance of your Ranger lathe.

Ranger RL-8500 / RL-8500XLT Technical Advantages (Explained Clearly)

Ranger brake lathes outperform many competitors because they eliminate traditional gear-driven transmissions and instead use independent DC servo motors. This design reduces vibration and delivers more consistent finish cuts.

Core Ranger Innovations You Benefit From:+

• infinitely adjustable feed rates
• negative rake tooling for one-pass finish
• heavy cast-iron construction for stability
• transmission-free operation
• quieter serpentine belt system
• quick-change tool head design
• micro-precision twin cutter
• advanced vibration control

These features work well — until mechanical wear, motor problems or calibration issues develop. That’s where we step in.

Ranger Brake Lathe Service Process

Our technicians carry out a full technical evaluation:

Full Diagnostic Includes

• spindle runout measurement
• arbor alignment test
• vibration frequency analysis
• DC servo motor inspection
• crossfeed and spindle feed evaluation
• electrical system testing
• cutting tool and twin-cutter assessment
• test cuts for surface finish diagnosis

Repair & Calibration Includes

• spindle bearing replacement
• arbor balancing
• servo motor repair or replacement
• feed system calibration
• tool head leveling and alignment
• electrical repairs
• cut-depth calibration
• full operational test

We restore your Ranger lathe so it performs like the day it was installed.

Specifications Overview (Simplified for Customers)

We summarize Ranger RL-8500 and RL-8500XLT capabilities:

Ranger RL-8500

• Max rotor diameter: 17″
• Drum diameter: 6″–28″
• Spindle speed: 150–200 RPM
• Max load: 150–250 lbs (depending on arbor)
• Spindle travel: 6–7/8″
• Electric: 115–230V, 20A servo system

Ranger RL-8500XLT (Extended Capacity)

• Same specs + deeper drum capacity (up to 10″)
• upgraded spindle support
• longer arbor for heavy-duty use

If your unit struggles with any of these functions, it requires calibration or internal repair.

Parts We Replace on Ranger Brake Lathes

We supply and install replacement parts:

• servo motors (crossfeed & spindle feed)
• electrical boards and control switches
• carbide cutting tools and inserts
• twin cutter assemblies
• crossfeed shafts and gear components
• spindle bearings
• adapters, cones, spacers and floating systems
• serpentine belts
• safety shields, lamps and wiring

All parts installed meet or exceed OEM quality.

Why Choose Our Ranger Brake Lathe Repair Service

• technicians specialized in Ranger systems
• deep understanding of servo-motor controlled lathes
• complete diagnostic + calibration
• on-site service for shops
• fast turnaround
• accurate, consistent finish cuts restored
• competitive pricing

We make your Ranger brake lathe cut clean, smooth and reliable again.
